High reliability. A twin contact clip mechanism is used for the contact part.
Can be washed as a whole. All types have a completely sealed structure.
For minute currents. Since the contact part is gold-plated, it is ideal for use in the minute current region.
For printed circuit boards only. All terminal pitches are inch size (2.54 mm).
Improved operability. A light operation feeling is realized by an independent moderation mechanism.
UL standard certified product. (Excluding ATE-J type.)

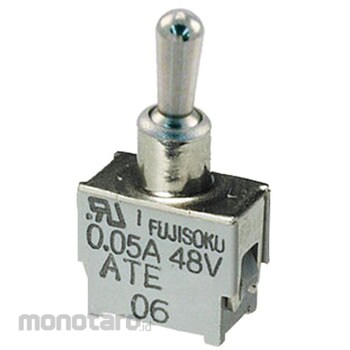

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Toggle switch ATE series
#Grup produk P115179073
Spesifikasi
| Electrical life | 10000 times at maximum rating, 50000 times at 0.4 VA or less |
|---|---|
| Insulation Resistance (MΩ) | 500 or more (DC500V) |
| Mechanical life | 50000 times |
| Operating Temperature Range (°C) | -20~+85 |
| Operation Mechanism | Flat toggle |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | Maximum: AC/DC60V 50mA 0.4VA AC, DC Minimum: AC/DC20mV 1μA |
| Storage Temperature Range (°C) | -40~+85 |
