The 8J short toggle switch has a shorter operation unit size (6.8mm) than the 8A type, and is designed for efficient use of a narrow space due to the miniaturization of the set.
* A lock nut, lock washer, and locking ring are included as standard. Various nuts are also available as an option.

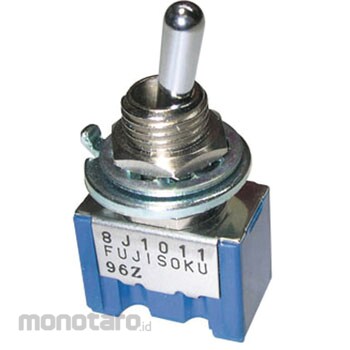

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Toggle switch 8J series
#Grup produk P115179055
Spesifikasi
| Contact | Silver contacts |
|---|---|
| Electrical life | 50000 times |
| Insulation Resistance (MΩ) | 1000 or more (DC500V) |
| Operating Temperature Range (°C) | -30~+85 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | Maximum: 125 VAC 6 A / 250 VAC 3 A / 30 VDC 4 A |
| Storage Temperature Range (°C) | -40~+85 |
| Switch Type | ON-ON |
| Terminal Shape | PC terminal |
| Type | Short toggle |
