With a short stroke, light operation force, and light touch, it has a good feeling of operation.
The height on the board is as thin as 5.08 mm, which contributes to the thinning of equipment. In addition, since the terminals are at inch pitch intervals (2.54 mm x n), high-density mounting is possible.
Since the terminals are bent at inch pitch intervals, they do not float when attached to a printed circuit board, can be temporarily fixed, and soldering work is easy.
Since the switch contact part is hermetically sealed, there is no ingress of flux, etc., and it is possible to wash the product completely depending on the conditions. It also has excellent waterproof and dustproof properties, and maintains high contact reliability.
* About full-wash cleaning: When cleaning the flux after soldering, use an alcohol-based cleaning solution. Do not wash with organic solvents.
* Cleaning conditions: Perform within 1 minute in a liquid bathtub with a depth of 5 cm. Do not operate the switch or apply force to the operation part during cleaning.

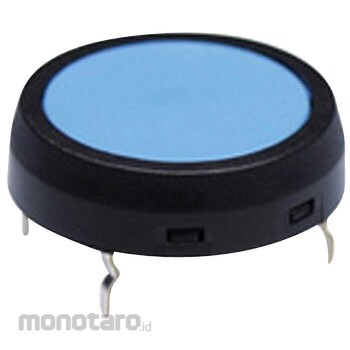

NKK Switches (formerly Nippon Kaikei) Tactile Switch JF Series
#Grup produk P115177279
Spesifikasi
| Circuit | Single pole single throw |
|---|---|
| Operating Temperature Range (°C) | -25~85 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Terminal Shape | PC terminal |
| Withstand Voltage | 250 VAC for 1 minute or more |
