Ultra-small slide switch with twin contact structure.
The operation feeling is a clear feeling that does not make you aware of the ultra-small size by the switching mechanism using springs and steel balls.
Since the contact part uses a sliding contact mechanism, self-cleaning is performed each time switching is performed to maintain high contact reliability.
The design is unique and graceful in appearance.
The ultra-compact design allows continuous mounting with a 2.54 mm pitch.
High contact reliability has been achieved by the structure in which the movable contacts make twin contacts with respect to the fixed contacts.
The terminal part is insert-molded to prevent flux from entering and terminal backlash, further improving contact stability.
For signal switching of OA equipment, FA equipment, communication equipment, measuring equipment, amusement-related equipment, and other various equipment
* Cannot be washed as a whole. When cleaning the flux on the printed circuit board surface after soldering, use an alcohol-based cleaning solution.

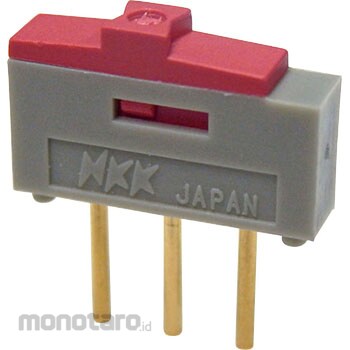

NKK Switches (formerly Nippon Kaikei) Super mini slide switch SM series
#Grup produk P115176331
Spesifikasi
| Circuit | Single pole double throw |
|---|---|
| Contacts Spacing (mm) | 2.54 |
| Current Capacity | Maximum rating/0.5A 12V Minimum rating/1mA 10mV |
| Functional Operation | ON-ON |
| Heat Resistance | When using a solder bath (by mounting the board) / Temperature 250 ° C or less within 5 seconds |
| Insulation Resistance (GΩ) | 1 or more (DC500V) |
| Operating Temperature Range (°C) | -40~85 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
