High contact reliability. A twin-contact clip mechanism is used for the contact part.
Fully washable. Fully sealed mechanism.
Since the contact part is gold-plated, it is suitable for use in a microcurrent area.
Improved operability. The independent moderation mechanism realizes light operation feeling.

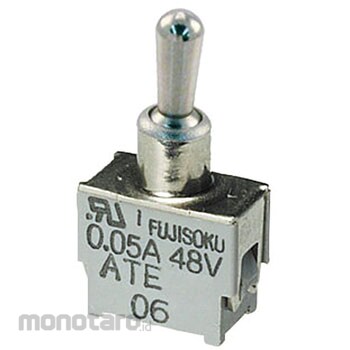

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) standard toggle switch
#Grup produk P115176173
Spesifikasi
| Contacts Spacing (mm) | 2.54 |
|---|---|
| Electrical life (rated load) | Maximum rating: 10,000 times, 0.4VA or less: 50,000 times |
| Insulation Resistance (MΩ) | (Initial) 500 or more (250V DC) |
| Number of Poles | Single pole |
| Operating Temperature Range (°C) | -20~+85 |
| Operation Mechanism | Standard |
| Rating | Maximum: AC / DC48V 50mA 0.4VA AC DC, Minimum: AC / DC20mV 1μA |
| Standard | UL certified product |
| Storage Temperature Range (°C) | -40~+85 |
| Switch Type | ON-ON |
| Terminal Shape | P / C terminal |
| Withstand Voltage | 250 VAC for 1 minute |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationRoHS compliant product
