* Please use a solvent based on fluorine or alcohol.
* Since it is not waterproof, if you need to clean the PC, brush the solder surface so that the switch body does not get wet.

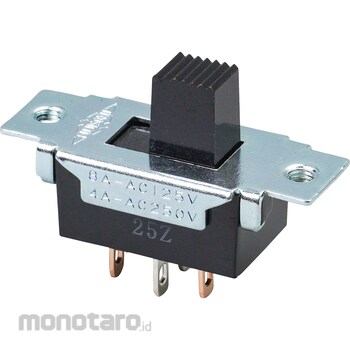

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Small slide switch
#Grup produk P115175174
Spesifikasi

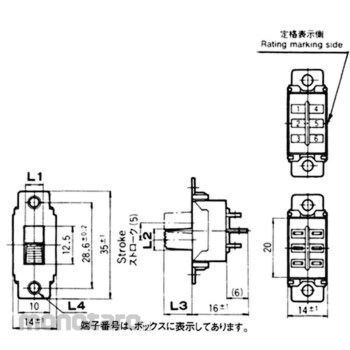

| Dimension L1 (mm) | 6.2 |
|---|---|
| Dimension L2 (mm) | 7.4 |
| Dimension L3 (mm) | 9 |
| Dimension L4 (mm) | M3x0.5 |
| Electrical life (rated load) | 10000 times |
| Insulation Resistance (MΩ) | 100 or more (DC500V) |
| Number of Poles | 2-pole double throw / DPDT |
| Rating | AC125V 8A,AC250V 4A |
| Terminal Shape | Solder |
| Withstand Voltage | 1500V AC for 1 minute |
