High contact reliability. A twin contact clip mechanism is used for the contact part.
For minute currents. Since the contact part is gold-plated, it is ideal for use in the minute current region.
For printed circuit boards only. All terminal pitches are inch size (2.54 mm)
Improved operability. A light operation feeling is realized by an independent moderation mechanism.

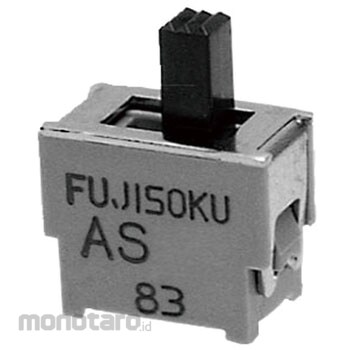

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Slide switch AS series
#Grup produk P115174397
Spesifikasi
| Electrical life | 10,000 times at maximum rating, 50,000 times at 0.4 VA or minimum rating |
|---|---|
| Insulation Resistance (MΩ) | 500 or more (DC500V) |
| Operating Temperature Range (°C) | -20~+85 |
| Operation Mechanism | Standard |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | (AC / DC 0.4VA) Voltage range: 20mV to 48V, current range: 1μA to 50mA, (maximum) 48V AC / DC 50mA, (minimum) 20mV AC / DC 1μA |
| Storage Temperature Range (°C) | -40~+85 |
