Sliding twin crossbar contact mechanism is used. The unique switching mechanism, which combines a coil spring, a sliding rod, and a switching plate, ensures reliable switching and a light operation feel. The terminals are sealed with epoxy to prevent the infiltration of flux and the occurrence of terminal rattle, further improving contact stability. The PC-H terminal type can be used with 1/2 inch card racks. Antistatic resin is used in part of the switch housing head (black part), so in switches with a mounting plate, the housing head and the mounting plate are electrically connected, and the mounting plate feet can be used to ground the printed circuit board. The terminal pitch is inch pitch (2.54 mm).
Office automation equipment, radios, professional video cameras, exchanges, electrical measuring instruments, control panels, etc.
* Cannot be washed as a whole. When cleaning the flux on the printed circuit board surface after soldering, use an alcohol-based cleaning solution.

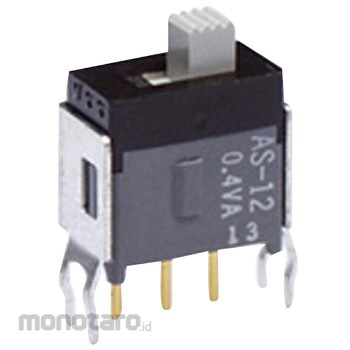

NKK Switches (formerly Nippon Kaikei) Slide switch A series
#Grup produk P115174333
Spesifikasi
| Operating Temperature Range (°C) | -30~85 |
|---|---|
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Stroke (mm) | 2.5 |
