Peak average forward current = 2.3A
Peak reverse repetitive voltage = 600V
Mounting Type = Through Hole Package Type = SIP
Number of pins = 4
Circuit Configuration = Single Peak Non-Repetitive Forward Surge Current = 120A
Operating temperature Max = +150°C
Operating temperature Min = -40°C
Peak forward voltage = 1.05V
Peak reverse current = 10μA
Length = 25mm
Width = 4.6mm

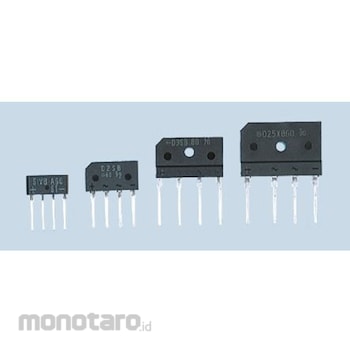

Full rated current can only be achieved with a suitable heat sink. . Shindengen SIP (Single In Line) Bridge Rectifiers. SIP (Single In Line Package) bridge rectifier products for through-hole PCB mounting. . Rated Current: 1 → 15 A Rated Voltage: 600 V/800 V
SHINDENGEN Shindengen Rectifier Bridge Diode Single Phase 2.3A, 600V, 25 x 4.6 x 15mm, D3SB60
#Grup produk P115173857
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
