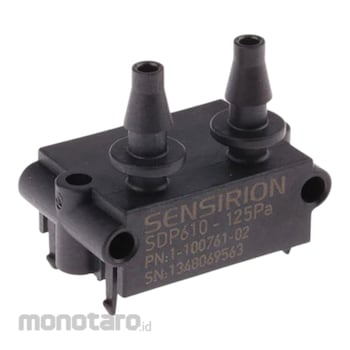

SENSIRION Sensirion, Pressure Sensor, Differential Board Mount

Specification
*Pressure reading type: Differential*Minimum pressure: -125Pa*Maximum pressure reading: 125Pa*Tolerance: 3%*Output type: I2C*Media:*Measurement: Air*Nitrogen gas*Oxygen gas*Process connection: 5.2mm tube*Response time: 4.6ms*Max. current:
<6 mA * Supply voltage: 3.6 V * Material: PBT * Maximum operating temperature: +80°C * SPD6xx Series Low-Cost Differential Pressure Sensors. Sensirion's SDP600 series digital differential pressure sensors boast excellent performance and are designed for low-cost, high-volume applications. These sensors are used with air and other non-corrosive gases and provide accurate and stable results even at very low differential pressures. The SDP600 series operates on a 3.3 V supply voltage and features a digital 2-wire interface for easy direct connection to a suitable microprocessor. The measurement signal is internally linearized and temperature compensated. The SDP6x1 devices ( 123-7139 ; 123-7142 ) are optimized for measuring mass flow or standard volumetric flow in bypass configuration. The SDP6x6 devices (; 123-7140 123-7140; ; 123-7143 123-7143) have a power saving feature that effectively puts the sensor into standby mode during measurements.
