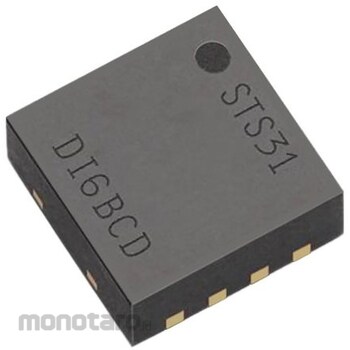

SENSIRION Temperature and Humidity Sensor (Sensor Suhu)

Specification
Sensor Function: Temperature/Humidity Output Type: Digital Interface Type: Serial-I2C Accuracy: ±0.2 (Temperature) °C, ±1.5 (Humidity) %RH Mounting Type: Surface Mount Number of Pins: 8 Operating Temperature Range: -40 -> +125 °C Operating Temperature Max: +125 °C Operating Supply Voltage Min: 2.4 V Operating Supply Voltage Max: 5.5 V Package Type: DFN Length: 2.6mm Height: 1mm Width: 2.6mm Dimensions: 2.6 x 2.6 x 1mm SHT3x Series Temperature / Humidity Sensors. The SHT3x series is the next generation temperature/humidity sensor from Sensirion. The 8-pin DFN package is fabricated using CMOSens(R) technology to combine the sensing element and analog/digital signal processing circuitry. The SHT3x series offers enhanced intelligence, reliability and improved accuracy specifications compared to its predecessor. The small package allows easy integration in a variety of applications. < 876-5067') 876-5067/ SHT31-ARP-B analog output < 876-5061') 876-5061/ SHT31-ARP-B digital output < 123-7352') 123-7352/ SHT35-ARP -B digital output, high accuracy. CMOSensR technology Fully calibrated, linearized, temperature compensated digital output Wide supply voltage range: 2.4 to 5.5 V 10 to 90% ratiometric analog voltage output Separate pins for temperature and humidity Simultaneous measurement Small 8-pin DFN package
