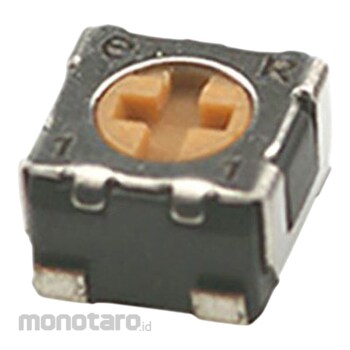

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Semi-fixed resistor Nidec Copal Electronics, 5kΩ, 0.125W, top surface adjustment
#Grup produk P115173291
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationMaximum Resistance = 5kΩ Turns = 1 Mounting Type = Surface Mount Power Rating = 0.125W Series = ST32 Orientation = Top Adjust Termination Style = Solder Pin Length = 3.4mm Depth = 2mm Height = 3.4mm Dimensions = 3.4 x 2 x 3.4 mm Tolerance = ±20% Element material = Cermet Copal ST-32 Series. A range of commercial Copal cermet trimmers from the ST-32 series. The main feature is the closed structure. This trimmer has a J-Hook terminal. . Rotor lead terminals with cross slots J-Hook terminals Seal structure
