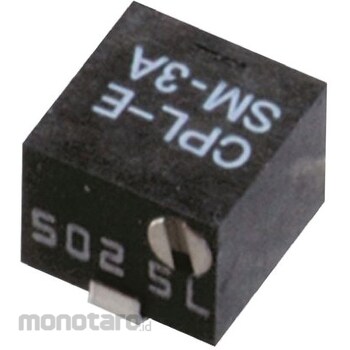

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Semi-fixed resistor Nidec Copal Electronics, 2kΩ, 0.125W
#Grup produk P115172557
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationMaximum Resistance = 2kΩ Turns = 11 Mounting Type = Surface Mount Power Rating = 0.125W Termination Style = J-Hook Length = 3.9mm Depth = 3.9mm Height = 3.4mm Dimensions = 3.9 x 3.9 x 3.4mm Shaft Diameter = 1.3 mm Tolerance = ±20% Maximum operating temperature = +150°C Cermet trimmer SM-3 series (11 turns type). 3mm size multi-turn trimmer (11 turns) Fine adjustment possible Soldering by reflow soldering Sealed structure Washable Compatible with lead-free and cadmium-free
Ulasan Produk
Tidak ada ulasan
