Uses diallyl phthalate resin (UL94V-O), which has excellent arc resistance, heat resistance, and insulation. Since the terminal uses an insert molding method, it has a permanent seal structure that completely prevents flux from entering the terminal. A wiping mechanism is used for the contact area, providing stable contact and high reliability. With a variable stopper, the number of contacts can be selected arbitrarily.
* Locknut, lock washer, locking ring and stopper are included as standard. MR knobs and stoppers are sold separately.

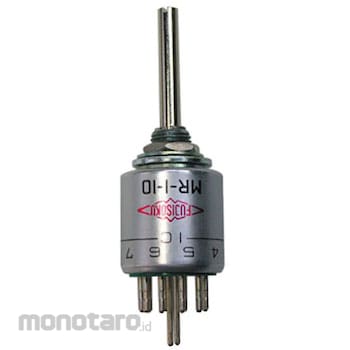

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Rotary switch MR series
#Grup produk P115167032
Spesifikasi
| Contact | Silver plating |
|---|---|
| Electrical life | 10000 times (1 time per round trip) |
| Insulation Resistance (MΩ) | 100 or more (DC500V) |
| Number of Circuits | 1 circuit |
| Number of Contacts | 10 contacts |
| Offset Angle (°) | (Step) 36 |
| Operating Temperature Range (°C) | -20~+85 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | Maximum: AC125V 500mA, minimum: AC / DC 5V 10mA |
| Storage Temperature Range (°C) | -40~+85 |
| Strength | (Stopper) 19.6N . cm |
| Type | 9 steps |
