It is a switch that realizes an economical price by thorough VA and silver-saving design.
The contact part uses a seesaw-type slide mechanism (patented) to ensure contact stability and high reliability, and can be used with a wide current capacity from 1mA to 12A.
In addition, self-extinguishing UL94V 10 phenol resin is used for the box material, and it has excellent insulation and sag resistance. All types (except HLS308A) are UL and CSA certified products and are highly reliable switches.
* Buttons are sold separately. Please select from the HLS buttons.

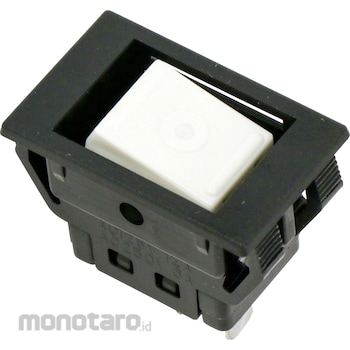

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) ROCKER SWITCHES HLS Series
#Grup produk P115166653
Spesifikasi
| Electrical life | 15000 times |
|---|---|
| Insulation Resistance (MΩ) | 100 or more (DC500V) |
| Number of Poles | 2-pole |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | Maximum: 125 VAC 8 A / 250 VAC 5 A, minimum: 6 VAC / DC 1 mA |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
