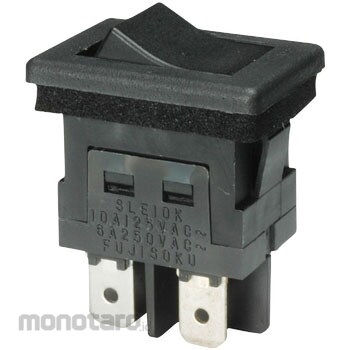

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Rocker switch SLE10K series

Waterproof structure The sealed structure allows use in wet places. Panel waterproofing is equivalent to IP64. Snap-in mounting method Simply insert the connector into the panel hole from the front to secure it to the panel. Solder and tab combination terminal The structure allows use of a receptacle for tab terminal #187 and soldering of lead wires. UL, CSA, VDE certified product RoHS compliant product
*The waterproof performance of the SLE10K panel is equivalent to IP64, but please strictly observe the following precautions when using the switch. 1. Waterproof performance (IP64 equivalent product) Although the switch is waterproof, do not use the switch in an environment where water pressure is constantly applied (jet or underwater). Avoid using the switch in a place where dust accumulates, as this may impair the waterproof performance and operability. 2. Panel installation: If the switch is used in a place where it may be exposed to water droplets, install the switch at an angle of 35° or more from the horizontal plane. When installing the switch on a panel, install the switch so that the packing thickness is 1 mm or less when set. Please do not remove a switch that has been installed on a panel and used, and then install it on the panel again for use. This will impair the waterproof performance of the packing.
