Waterproof structure. The sealed structure allows it to be used in wet places. The panel waterproofness is equivalent to IP64.
Snap-in mounting method. Installation to the panel can be fixed by simply inserting it into the panel hole from the front.
Terminal for both solder and tab. It is a structure that can be used for both the receptacle for tab terminal # 187 and the lead wire soldering.
UL / CSA / VDE standard certified product.

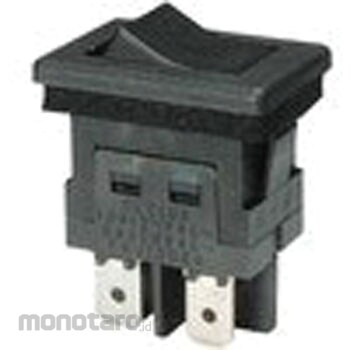

* Panel waterproof small rocker switch
NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Rocker switch SLE10K series
#Grup produk P115166495
Spesifikasi
| Color | (Frame locker) black |
|---|---|
| Electrical life | (Inductive load) 10,000 times, (Resistance load) 20,000 times |
| Insulation Resistance (MΩ) | 100 or more (DC500V) |
| Number of Poles | 2-pole |
| Operating Temperature Range (°C) | -25~+85 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | [Inductive load] Inrush current (power factor = 0.6): AC125 60A, AC250 36A, Breaking current (power factor = 0.9): AC125 10A, AC250 6A [Resistive load] AC125V 10A, AC250V 6A (power factor = 1.0) [minimum Rating] AC/DC5V 10mA |
| Storage Temperature Range (°C) | -40~+85 |
| Switch Type | ON-OFF |
| Terminal Shape | Tab terminal TAB # 187 (t = 0.5) |
