UL, CSA, VDE standard certified products Mounting on panels is a snap-in method.
Because it is a compact type, it is suitable for space-saving design.
Ideal for powering equipment.
Inrush current 100A type.
Breaking distance 3 mm or more
RoHS compliant product

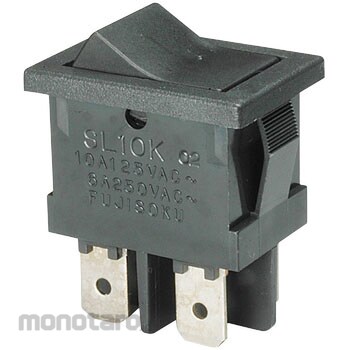

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Rocker switch SL10K series
#Grup produk P115166459
Spesifikasi
| Color | (Frame locker) black |
|---|---|
| Insulation Resistance (MΩ) | 100 or more (500 VDC) (between terminals) |
| Number of Poles | 2-pole single throw |
| Operating Temperature Range (°C) | -25~+85 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | Inrush current (power factor 0.6) / AC125V 100A / 60A, AC250V 60A / 36A, breaking current (power factor 0.9) / 10A (AC125V), 6A (AC250V) Resistance load: AC125V 10A, AC250V 6A (power factor 1.0) ) Minimum rating: AC / DC5V 10mA |
| Storage Temperature Range (°C) | -40~+85 |
| Switch | ON-OFF connection terminal: (1-2, 3-4)- |
| Terminal Shape | Tab terminal |
| Withstand Voltage | 1500 VAC for 1 minute (between terminals) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationOperating force: 3.92 to 12.7N
