UL, CSA, VDE standard certified product.
Mounting on the panel is a snap-in method.
Because it is a compact type, it is suitable for space-saving design.
Ideal for powering equipment.
Inrush current 100A type.
Breaking distance 3 mm or more.
* SLE6, SLE10, SL10K, and SLE210K switch guards are available as options.

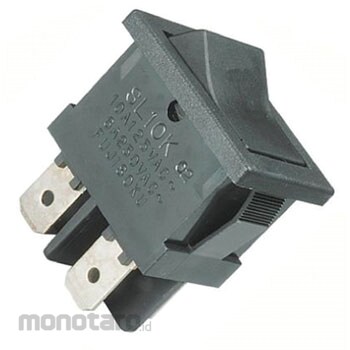

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Rocker switch SL10K series
#Grup produk P115166431
Spesifikasi
| Color | (Frame locker) black |
|---|---|
| Insulation Resistance (MΩ) | 100 or more (500 VDC) (between terminals) |
| Number of Poles | 2-pole |
| Operating Temperature Range (°C) | -25~+85 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | [Inductive load] Inrush current (power factor = 0.6): AC125 100A/60A, AC250 60A/36A, Breaking current (power factor = 0.9): AC125 10A, AC250 6A [Resistive load] AC125V 10A, AC250V 10A (power factor = 1.0) [minimum rating] AC/DC5V 10mA |
| Storage Temperature Range (°C) | -40~+85 |
| Switch Type | ON-OFF |
| Terminal Shape | Tab terminal TAB # 187 (t = 0.5) |
