All EL small mouth maker switches subject to the Electrical Appliance and Material Safety Law have obtained type approval.
The box uses self-extinguishing phenol resin (UL94V-0) with excellent heat resistance, arc resistance, and tracking resistance, and the contact structure that reduces chattering and bouncing time as much as possible prevents insulation deterioration due to arcing. It is a high-performance switch designed to.

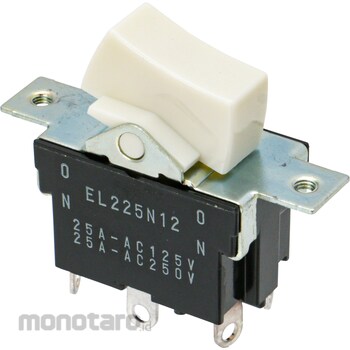

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Rocker switch EL series
#Grup produk P115166130
Spesifikasi
| Electrical life | 20000 times |
|---|---|
| Insulation Resistance (MΩ) | 1000(DC500V) |
| Number of Poles | 2-pole |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | AC125V 25A,AC250V 25A |
| Structure | Non dustproof type |
| Switch Type | ON-ON |
| Terminal Shape | Solder terminal |
