Compact & Slim: With a body width of 6.8mm, the slim design contributes to space savings for equipment. (1/2 compared to the manufacturer's previous model)
Simple dustproof structure: Despite the slim design, a simple dustproof structure has been adopted. The contact mechanism has a dust-proof structure to reduce dust intrusion and improve contact reliability.
Large creepage distance between terminals: A recess is created between the terminals to provide a large creepage distance, and consideration is given to insulation and safety withstand voltage.
Snap-in installation: Panel installation is a snap-in process, which saves installation time.
High contact reliability: We strive to improve contact reliability by adopting a structure in which the movable contact piece holder holds the movable contact piece in between.
Shuts out flux from entering: Epoxy seals on the terminals prevent flux from entering and the occurrence of terminal play, further improving contact stability.
About the internal mechanism: The switching mechanism is a seesaw type. The seesaw method has excellent features such as long life, large capacity, and robustness.
Communication equipment / wireless application equipment, electronic measuring instruments, automation equipment, office equipment, consumer electronic equipment, etc.

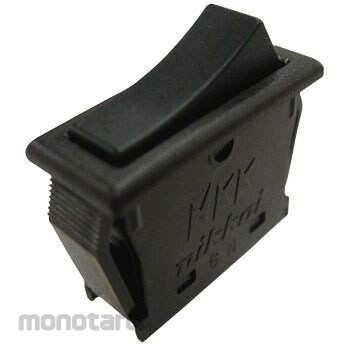

NKK Switches (formerly Nippon Kaikei) Rocker Switch CW Series CW-T
#Grup produk P115166112
Spesifikasi
| Circuit | Single pole double throw |
|---|---|
| Color (Body) | Black |
| Color of Operating Part | Black |
| Current Capacity (A) | 6A 125V AC / 3A 250V AC / 4A 30V DC |
| Functional Operation | ON - ON |
| Heat Resistance | When using a soldering iron: Temperature 350 ° C or less Within 3 seconds |
| Insulation Resistance (MΩ) | 1G or more (DC500V) |
| Number of Poles | 1 |
| Operating Temperature Range (°C) | -25~70 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Standard | UL,C-UL |
| Terminal Shape | Solder terminal |
| Withstand Voltage | AC 1.0kV (between terminals) for 1 minute or more<br> 1.5 kV AC (between terminal and ground) for 1 minute or longer |
