Snap-in mounting: Panel mounting can save labor for snap-in and mounting man-hours.
Large terminal hole (1.7 x 2.5 mm): Suitable for AWG # 16 stranded wire for easy wiring work.
High contact reliability: The movable contact receiving part adopts a structure that sandwiches and holds the movable contact to improve contact reliability.
Internal mechanism: The internal mechanism is a seesaw system. The seesaw method has excellent features such as long life, large capacity, and robustness.
Communication equipment / wireless application equipment, electronic measuring instruments, automation equipment, office equipment, consumer electronic equipment, etc.

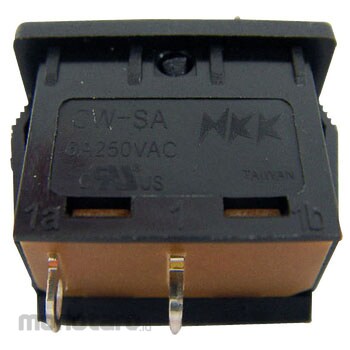

NKK Switches (formerly Nippon Kaikei) Rocker switch CW series CW-SA
#Grup produk P115166079
Spesifikasi
| Color (Body) | Black |
|---|---|
| Color of Operating Part | Black |
| Heat Resistance | When using a soldering iron: Tip temperature: 390°C or less; Soldering time: 4 seconds or less; Number of times: 2 times (after returning to room temperature) |
| Inductive load (A) | 6(AC250V) |
| Insulation Resistance (MΩ) | 500 or more (DC500V) |

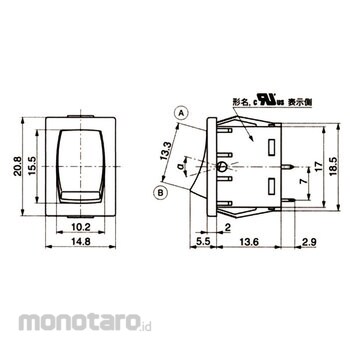

| Mounting Dimensions (mm) | 12.9x19.2 |
| Number of Poles | 1 |
| Operating Temperature Range (°C) | -10~70 |
| Standard | UL,C-UL |
| Terminal Shape | Solder |
| Type | Non-illuminated type |
| Type of Illumination | Non-illuminated type |
