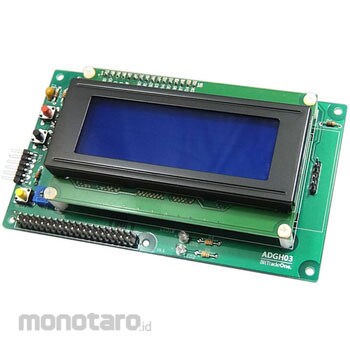

It is a radio control board that controls the Internet radio that operates on Raspberry Pi with a PIC microcomputer.
The control board controls the signal sent from the attached infrared remote controller and notifies the Raspberry Pi via GPIO of the station feed signal and volume adjustment.
It also has a large liquid crystal display capable of displaying 20 characters and 4 digits, and can display radio station information and song titles.
The control board sends radio station information and song titles via serial communication. You can learn serial communication between PIC microcomputer and GPIO!
* Raspberry Pi body is not included. * Soldering iron set, nippers, and drill are required for assembly.
Bit Trade One Raspberry Pi connection Radio control board [Internet radio with infrared remote control] [Kit]
#Grup produk P115165274
Spesifikasi
| Display | 20 characters x 4 lines |
|---|---|
| Included Accessories | Parts list x 1 part / Flat cable 40Pin x 1 / Infrared remote control x 1 |
| Main Unit Dimensions, Width W x Depth D x Height H (mm) | 130 x 75 x 23 (excluding protrusions) |
| Mass of Main Unit (g) | About 120 |
| Number of switches | 3 |
| Operating Temperature Range | 0 to 40 ° C (no condensation) |
| Operating Temperature/Humidity Range | Temperature 0 to 45 ° C / Humidity 10 to 60% (no condensation) |
| Output | (LED) 2 points |
| Power Supply | Powered from RaspberryPi |
| Suitable Models | RaspberryPiModelB+/RaspberryPi2ModelB/RaspberryPi3ModelB |
| Supported OS | Raspbian |
