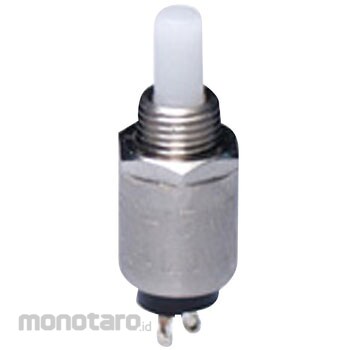

Ultra-small pushbutton switch with M5 screws.
Ultra-compact and space-saving type.
Since the contact part uses a sliding contact mechanism, self-cleaning is performed each time switching is performed to maintain high contact reliability.
Office automation equipment, radios, professional video cameras, exchanges, electrical measuring instruments, control panels, etc.
* The operation unit is sold separately.
* When mounting on a printed circuit board and using it, use the type (FB-15ANEP2) with a sealed terminal. In addition, since the above products are not sealed except for the terminals, please be careful about flux cleaning.
* Because the terminals are easily bent, if a force such as pulling an electric wire is applied during or after the soldering work, there is a risk of a short circuit between the terminals, so be careful when using insulating tape.
NKK Switches (formerly Nippon Kaikei) Pushbutton switch FB series
#Grup produk P115163814
Spesifikasi
| Button Color | Black / red / white |
|---|---|
| Button Shape | Round |
| Circuit | Single pole single throw |
| Current Capacity | 500mA AC125V |
| Functional Operation | OFF-<ON> (<> is momentary) |
| Heat Resistance | When using a soldering iron / Temperature 350 ° C or less within 3 seconds |
| Included Accessories | Hex nut (AT-536) |
| Insulation Resistance (MΩ) | 100 or more (DC500V) |
| Operating Temperature Range (°C) | -10~70 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Suitable For | Operation buttons (AT-475, AT-496) |
| Type | Non-illuminated type |
| Type of Operation | Momentary |
| Withstand Voltage | AC1000 |
