The 8R soft touch push switch has a snap action structure that is completely different from other ultra-small push button switches, and has a great feature of a light soft feeling.
In addition, the stroke is short (alternate type 2.5 mm, momentary type 1 mm), and the depth dimension from the panel mounting surface is about 5 mm shorter than other ultra-small pushbutton switches, making it ideal for space-saving design.
* Color buttons are sold separately. Select from the 8N, 8P, and 8R-N color buttons. Lock nut, lock washer, and locking ring are included as standard.

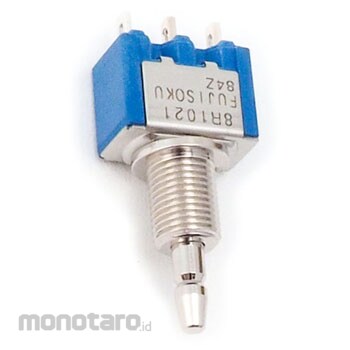

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Pushbutton switch 8R-N series
#Grup produk P115163753
Spesifikasi
| Button Color | White / Red / Black / Gray / Green / Blue / Orange / Yellow |
|---|---|
| Button Shape | Round |
| Included Accessories | For the lock nut x 2, lock washer x 1, locking ring x 1, and color button, please specify one of the above 12 types by model name. |
| Insulation Resistance (MΩ) | 1000 or more (DC500V) |
| Operating Temperature Range (°C) | -20~+85 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Storage Temperature Range (°C) | -40~+85 |
| Switch | ON-(ON) |
| Type | Non-illuminated type |
| Type of Operation | Momentary |
