The 8P waterproof push switch is a switch intended for panel sealing, and has a structure that can prevent water droplets and dust from entering from the panel surface by incorporating an "O" ring. (Equivalent to IP64) Since the locking ring cannot be used due to the need for a panel seal, the sleeve is "D" cut to prevent the switch from turning. Even if you make a Φ6.5 round hole in the panel and attach the switch, there is no effect on the drip-proof and dust-proof performance.
RoHS compliant product Panel waterproof
* Button color cap is not included. Sold separately.

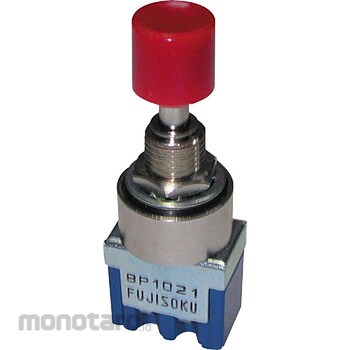

* The image is a representative image. Different from the actual product.
NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Pushbutton switch 8P series
#Grup produk P115163717
Spesifikasi
| Dimension B (mm) | 8 |
|---|---|
| Included Accessories | Lock nut x 1, Lock washer x 1, O-ring x 1 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | AC125V.6A/250V.3A |
| Surface Treatment | (Lock nut) Nickel plated, (Lock washer) Zinc plated trivalent chromate treatment, (O-ring) Nitrile rubber (Black) |
| Terminal Shape | Solder terminal |
