Very small. It is 1/2 volume ratio of the conventional A series.
It can be washed after soldering.
Terminal mounting is 0.1 inch (2.54 mm) pitch.
The operability is a light feeling due to the independent moderation mechanism.
Contact reliability is long-term stable due to clip contacts.
Gold-plated contacts
* Color buttons are sold separately. Glossy cap for FP and CFP2 Black only.

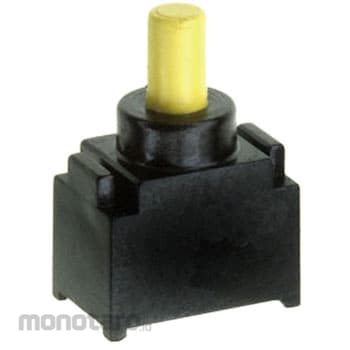

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Push button switch FP series
#Grup produk P115163577
Spesifikasi
| Button Color | Yellow |
|---|---|
| Electrical life | 10000 times at maximum rating, 30000 times at minimum rating |
| Insulation Resistance (MΩ) | 500 or more (DC250V) |
| Mechanical life | 30000 times |
| Operating Temperature Range (°C) | -40~+85 |
| Operation Mechanism | Standard |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | Maximum: 0.4VA (DC28V Max.), Minimum: DC20mV 1μA |
| Storage Temperature Range (°C) | -40~+85 |
| Switch | ON-(ON) |
| Type | Non-illuminated type |
| Type of Operation | Momentary |
