High reliability. A twin contact clip mechanism is used for the contact part.
Can be washed as a whole. All types have a completely sealed structure.
For minute currents. Since the contact part is gold-plated, it is ideal for use in the minute current region.
For printed circuit boards only. All terminal pitches are inch (2.54 mm) size.
UL standard certified product. APE type is UL standard certified product for all types.
* Color buttons and brackets are sold separately. Button black only for AP-M, APE-M, AP-S. APE-M bracket for 2 poles only.

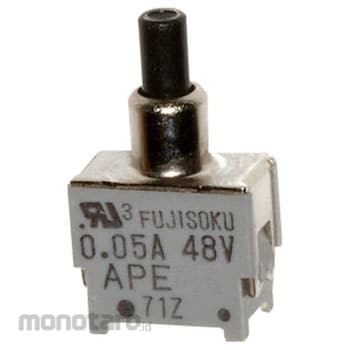

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Push button switch APE series
#Grup produk P115163498
Spesifikasi
| Button Shape | Round |
|---|---|
| Electrical life | 10000 times at maximum rating, 30000 times at 0.4 VA |
| Insulation Resistance (MΩ) | (Initial) 500 or more (250V DC) |
| Operating Temperature Range (°C) | -20~+85 |
| Operation Mechanism | Standard |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | 0.4VA AC, DC Maximum: AC / DC 48V 50mA, Minimum: AC / DC 20mV 1μA |
| Storage Temperature Range (°C) | -40~+85 |
| Switch | ON-(ON) |
| Type | Washing push type |
| Type of Operation | Momentary |
