For minute currents. Since the contact part is gold-plated, it is ideal for use in the minute current region.
For printed circuit boards only. All terminal pitches are inch (2.54 mm) size.
* Color buttons are sold separately. Color button for AP-H Black only.

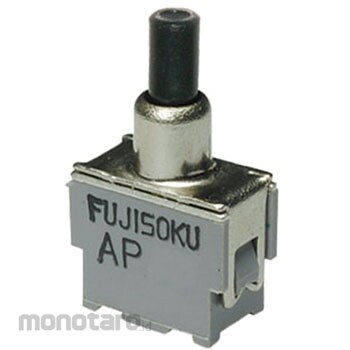

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Push button switch AP series
#Grup produk P115163452
Spesifikasi
| Button Color | White / Red / Black / Gray / Green / Blue / Orange / Yellow / Brown |
|---|---|
| Button Shape | Square |
| Electrical life | 10000 times at maximum rating, 30000 times at 0.4 VA |
| Insulation Resistance (MΩ) | 10,000 or more (DC250V) |
| Number of Poles | Single pole |
| Operating Temperature Range (°C) | -20~+85 |
| Operation Mechanism | Square |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | Maximum: AC / DC48V 50mA, Minimum: AC / DC20mV 1μA |
| Storage Temperature Range (°C) | -40~+85 |
| Terminal Shape | PC terminal |
| Type | Non-cleaning push |
| Type of Operation | Momentary |
