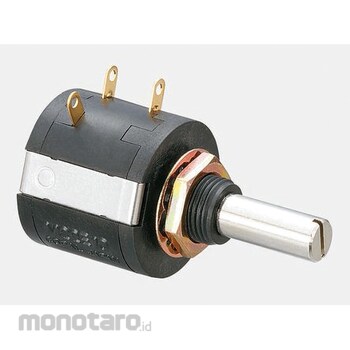

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Potentiometers M series M-22E10 for Manual Setting
#Grup produk P115162790
Spesifikasi
| Electrical Rotation Angle (°) | Valid: 3600 |
|---|---|
| Insulation Resistance (MΩ) | 1000/minimum (at DC 500 V) |
| Mass (g) | Approx. 17 |
| Mechanical Rotation Angle (°) | 3600<sup>+10</sup><sub>0</sub> |
| Operating Temperature Range (°C) | -40~85 |
| Protection Class | IP40 |
| Rated Power (W) | 2 |
| Resistance Tolerance (%) | ±5 |
| Rotation Speed | 10turns |
| Rotational Torque (mN.m[gfcm]) | 9.81maximum[100] |
| Service Life | [Rotation speed] 25000 cycles |
| Single linearity (%) | ±0.2 |
| Strength (N m) | [Stopper] 0.196 maximum [2 kgf.cm] |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationMaximum Resistance = 2kΩ Turns = 10 Potentiometer Type = Linear Mounting Type = Panel Mount Shaft Diameter = 6mm Mounting Hole Diameter = 9mm Power Rating = 2W Termination Style = Solder Lug Tolerance = ±5% Series = M-22E10 Length = 42mm Depth = 21mm Height = 27mm Dimensions = 42 x 21 x 27mm Temperature coefficient = ±50ppm/°C Potentiometer 22mm 2W 10 turns Wound M-22E10 Series. Precision potentiometer Wound multi-turn type (10 turns)
