Free choice. Two types are available: rubber contacts with a soft click feel that can be mounted on the same panel surface, and metal contacts with a sharp feel. Please choose one according to the application.
For printed circuit boards only. All terminal pitches are inch size (multiples of 2.54). Due to the unique terminal shape, there is no lifting from the printed circuit board surface during solder dipping.
Improved solder heat resistance. By improving the terminal structure, contact failure due to solder heat is prevented and reliability is improved, and two terminals are arranged at the same pole to add a function as a jumper wire to the terminals.
With LED. LED illumination is possible even with a compact outer shape.
Accessories. We have a wide variety of accessories such as color buttons, mounting frames, and LED illumination.
Lead-free soldering compatible product. High heat resistant resin is used so that lead-free solder can be used on the user side.
*Color buttons and mounting frame are sold separately. Please choose from the color buttons and mounting frames for TM1. *There is no problem using TMG-01 under the conditions of TM1-01, but if you use TM1-01 when using the micro current under the conditions of TMG-01, it will not turn on. Masu.

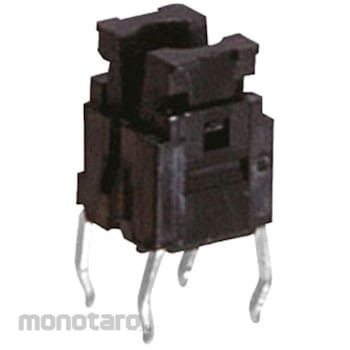

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Non-illuminated switch TM series
#Grup produk P115160914
Spesifikasi
| Circuit Configuration | SPST |
|---|---|
| Insulation Resistance (MΩ) | (Minimum) 100 (DC100V) |
| Maximum Contact Resistance (MΩ) | 100 below (AC200μV1.5mA 1.96N{200gf} load) |
| Operating Temperature Range (°C) | -25~70 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | (Max)1VA |
| Storage Temperature Range (°C) | -40~70 |
| Stroke (mm) | 0.25 |
| Structure | Basic switch without LED |
| Switch Type | OFF-(ON) |
| Withstand Voltage (V/minute) | AC250 |
