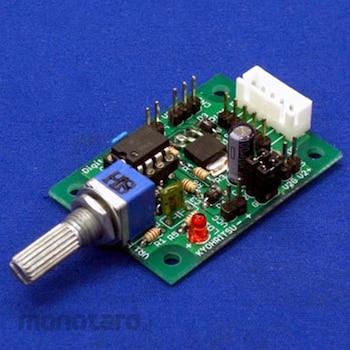

The Mini PWM Generator Kit is an assembly kit for a fixed frequency/variable duty ratio oscillator circuit using a CMOS 555. The on-board volume allows you to vary the duty ratio of the PWM output from approximately 10% to 90%. The on-board power MOS-FET allows it to directly drive loads of around 1A (such as small DC motors). The power supply for the power MOS-FET section can be separate from the power supply for the oscillator circuit section.
The board can be attached using M3 screws.
*This is an assembly kit that requires soldering.
*Tools such as a soldering iron are required separately.
Kyohritsu Electronic Industry Mini PWM Generator Kit
#Grup produk P115151730
Spesifikasi
| Board Dimensions (mm) | Approximately 47 x 33 *Does not include protruding volume |
|---|---|
| Duty Ratio | Approximately 10% to 90% (variable) |
| Oscillation Frequency (kHz) | Approximately 25 (fixed) |
| Power Supply Voltage | DC5V~12V |
