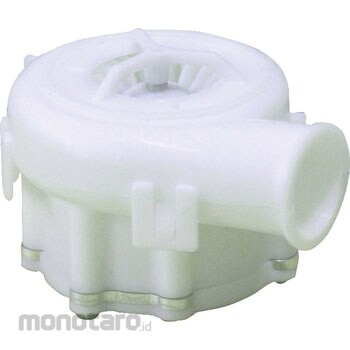

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Micro blower
#Grup produk P115151554
Spesifikasi
| Driving System | Three-phase bipolar |
|---|---|
| Insulation Resistance (MΩ) | 1 or more |
| Insulation class | Class E |
| Isolation Voltage | Leakage current 1mA or less |
| Mass (g) | 55 |
| Maximum Pressure (kPa) | 3.5 (absolute maximum pressure) |
| Noise Level (dB(A)) | 65.0 or less |
| Number of Poles | 4 poles |
| Operating Humidity Range | 10 to 90% RH (no condensation) |
| Operating Temperature Range (°C) | 0~50 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Flow (L/min) | 100 |
| Rated Power Consumption (W) | 14.9 or less |
| Rated Pressure Range (kPa) | 2 |
| Rated Rotation Speed (rpm) | 36000 |
| Rated Voltage | DC12~27 |
| Storage Humidity Range | 10 to 95% RH (no condensation) |
| Storage Temperature Range (°C) | -20~60 |
