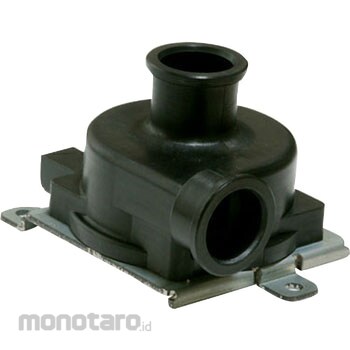

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Micro blower
#Grup produk P115151536
Spesifikasi
| Driving System | Three-phase bipolar |
|---|---|
| Insulation Resistance (MΩ) | over 20 |
| Insulation class | Class E |
| Isolation Voltage | Leakage current 1mA or less |
| Mass (g) | 165 |
| Maximum Pressure (kPa) | 4.5 (absolute maximum pressure) |
| Noise Level (dB(A)) | 65.0 or less |
| Number of Poles | 8-pole (4-pole logarithm) |
| Operating Humidity Range | 10 to 90% RH (no condensation) |
| Operating Temperature Range (°C) | -10~60 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Flow (L/min) | 100 |
| Rated Power Consumption (W) | 22.7 or less |
| Rated Pressure Range (kPa) | 3 |
| Rated Rotation Speed (rpm) | 35500 |
| Rated Voltage | DC24±10% |
| Storage Humidity Range | 10 to 90% RH (no condensation) |
| Storage Temperature Range (°C) | -20~60 |
