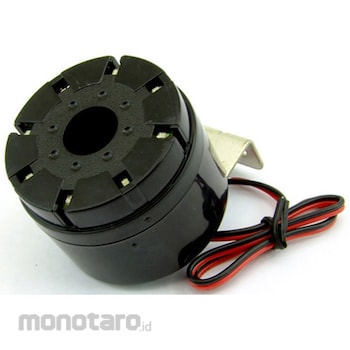

Kyohritsu Electronic Industry Loud buzzer with red LED
#Grup produk P115151077
Spesifikasi
| AS ONE Part Number | 68-1984-69 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This is an intermittent buzzer that rings out at a loud volume of 105dB (similar to hearing a car horn 2m ahead). Eight surrounding LEDs flash in sync with the intermittent operation of the buzzer. Comes with a mounting bracket.
Feature
Specification*Oscillation frequency: 2.8±0.5KHz*Operating voltage: DC5 to 15V*Rated voltage: DC12V*Current consumption: Maximum 200mA (at DC12V)*Sound pressure level: Minimum 105dB/100cm (at DC12V)*Tone/pulse rate: Pulse 1.2Hz*Number of LEDs: 8*LED light color: Red*Operating temperature: -20 to +70°C*Storage temperature: -30 to +80°C*Cable: AWG20 approx. L=300mm*Notes: Please note that the appearance and specifications may change without notice.
