With a long size equivalent to a straight tube fluorescent lamp of 20W, it illuminates the inside of the panel even brighter.
Power consumption is about half that of conventional fluorescent lamps.
Clean lighting without mercury.
It does not get hot like fluorescent lights and is safe.
Since it emits almost no ultraviolet rays, it can prevent pests from invading the inside of the panel and its surroundings.
Since no glass is used, it is safe against vibration during transportation and shock during installation.
The compact and simple design makes it easy to install in the panel and is lightweight.
Please use it for panel lighting such as power receiving and distribution boards, distribution boards, and control boards.

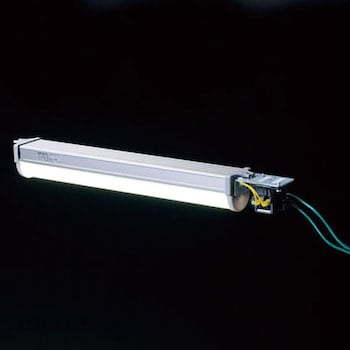

Shinohara Electric LED unit integrated terminal block
#Grup produk P115150759
Spesifikasi
| Illuminance (Lx) | Reference: About 290 (directly under 1m) |
|---|---|
| Illumination Angle (°) | About 160 |
| Input Current (mA) | 105 |
| Insulation Resistance (MΩ) | 100 or more at DC500V megger |
| LED Life (hour) | About 40000 |
| Mass (g) | 380 |
| Mounting Screw Spacing (mm) | 560 |
| Overall Length (mm) | 609 |
| Power Consumption (W) | 9 at 100V |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Voltage (V) | AC100~240(±10%) 50/60Hz |
| Total Luminous Flux (Lm) | 1200(±10%) |
| Withstand Voltage (V/minute) | AC1500 (between ground) |
