Mouth Ngst Mouth. It is an ultra-compact switch with a single key 2-circuit transfer type, a lock stroke of 1 mm, and a full strike mouthpiece of 1.5 mm.
Contact reliability. The contact part is highly reliable due to the adoption of a clip-type contact mechanism.
For printed circuit boards only. All terminal pitches are inch size (multiples of 2.54 mm). Due to the unique terminal shape, there is no lifting from the printed circuit board surface during solder dipping.
Flux intrusion prevention. The terminals are completely sealed with epoxy resin.
Illumination and accessories. We have a wide variety of accessories such as color buttons, mounting frames, and LED illumination.
It has dimensions that can be mounted on the same panel surface as the LTR / LTM series. Please choose a wide variety of combinations according to your application.
* Color buttons and mounting frame are sold separately. Please choose from the color buttons for TP and TPL and the mounting frame.

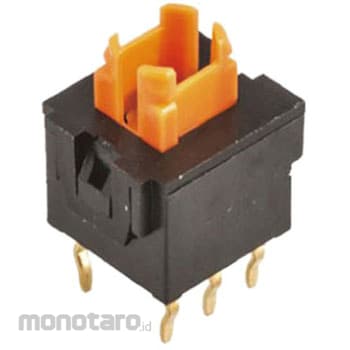

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Illuminated switch TP series
#Grup produk P115149434
Spesifikasi
| Circuit Configuration | 2PDT |
|---|---|
| Contact | Silver plating |
| Electrical life | 10000 times |
| Insulation Resistance (MΩ) | (Minimum) 100 (DC500V) |
| Operating Temperature Range (°C) | -10~70 |
| Plating | Contacts: Silver plated |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Current (A) | (Maximum) 0.1 |
| Rated Voltage (V) | (Max)DC30 |
| Storage Temperature Range (°C) | -25~85 |
| Structure | With LED |
| Withstand Voltage (V/minute) | AC500 |
