Free choice. Two types are available: rubber contacts with a soft click feel that can be mounted on the same panel surface, and metal contacts with a sharp feel. Please choose one according to the application.
For printed circuit boards only. All terminal pitches are inch size (multiples of 2.54). Due to the unique terminal shape, there is no lifting from the printed circuit board surface during solder dipping.
Improved solder heat resistance. By improving the terminal structure, contact failure due to solder heat is prevented and reliability is improved, and two terminals are arranged at the same pole to add a function as a jumper wire to the terminals.
With LED. LED illumination is possible even with a compact outer shape.
Lead-free soldering compatible product. High heat resistant resin is used so that lead-free solder can be used on the user side. (TM series only)
* Color buttons and mounting frame are sold separately. Please select from the color buttons for TM2 and the mounting frame.

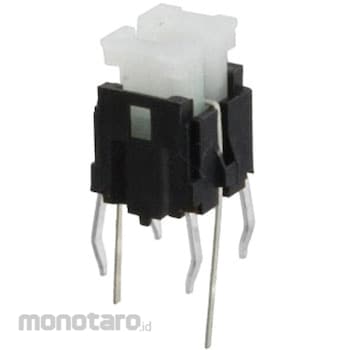

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Illuminated switch TM series
#Grup produk P115149416
Spesifikasi
| Button Shape | Square |
|---|---|
| Contact | Gold plate |
| Insulation Resistance (MΩ) | 100 or more (DC100V) |
| Mechanism | Metal contact |
| Operating Temperature Range (°C) | -25~+70 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | 1VA Max.(DC48V Max.50mA Max.)10μ A Min. |
| Storage Temperature Range (°C) | -40~+70 |
| Type | Illuminated |
| Type of Operation | Momentary |
