For mounting, a snap-in mounting method that can be fixed by simply inserting it into the panel hole is adopted.
The connector can be attached to the terminal with one touch.
Connector-integrated terminal that does not use a PC board.
A sharp click feeling is realized by adopting a dome-shaped contact.
Buttons for operating amusement play equipment.
Ideal as an operation button for various signal inputs.
* Color buttons and mounting frame are sold separately. Please choose from the color buttons for LTR and LTM and the mounting frame.

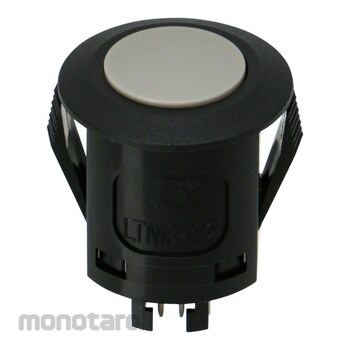

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Illuminated switch LTM series
#Grup produk P115149373
Spesifikasi
| Bouncing | 10 ms or less (initial value) |
|---|---|
| Button Color | Gray |
| Button Shape | Round |
| Contact | Silver plating |
| Electrical life | 300,000 times |
| Insulation Resistance (MΩ) | 100 or more (DC100V) |
| Operating Temperature Range (°C) | -25~+70 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | 1VA Max.(DC48V Max.50mA Max.)0.5mA Min. |
| Storage Temperature Range (°C) | -40~+70 |
| Stroke (mm) | 0.25 |
| Type | Illuminated |
| Type of Operation | Momentary |
