Full illumination. It is a small, mouth-cost operation switch with full illumination by LED. Due to its compact design, it has □ 7.5, Φ7.5, □ 10, Φ10 and has a full illuminated surface of three colors: red, green, and yellow.
Free choice. Two types are available: rubber contacts with a soft click feel that can be mounted on the same panel surface, and metal contacts with a sharp feel. Please choose one according to the application.
For printed circuit boards only. All terminal pitches are inch size (multiples of 2.54 mm). Due to the unique terminal shape, there is no lifting from the printed circuit board surface during solder dipping.
Improved solder heat resistance. By improving the terminal structure, contact failure due to solder heat is prevented and reliability is improved, and two terminals are arranged at the same pole to add a function as a jumper wire to the terminals.
Lead-free soldering compatible product. High heat resistant resin is used so that lead-free solder can be used on the user side.
* Color buttons and mounting frame are sold separately. Please choose from the color buttons for LTR and LTM and the mounting frame.

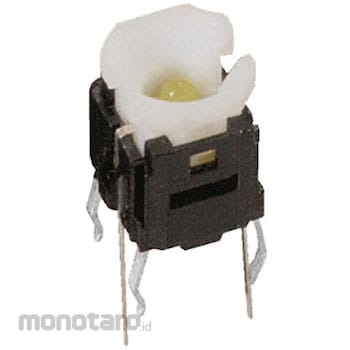

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Illuminated switch LTM series
#Grup produk P115149355
Spesifikasi
| Bouncing | 10 ms or less (initial value) |
|---|---|
| Button Shape | Round / corner |
| Contact | Gold plate |
| Electrical life | 300,000 times |
| Illuminated color | Green |
| Insulation Resistance (MΩ) | 100 or more (DC100V) |
| Luminance | Normal brightness |
| Mechanism | Metal contact |
| Operating Temperature Range (°C) | -25~+70 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | 1VA Max.(DC48V Max.50mA Max.)0.5mA Min. |
| Storage Temperature Range (°C) | -40~+70 |
| Stroke (mm) | 0.25 |
| Type | Illuminated |
| Type of Operation | Momentary |
