For printed circuit boards only. All terminal pitches are standard inch size.
Contact reliability. The contact part has a self-cleaning mechanism, and twin contacts with reliable contact are used.
Light click feeling. Uses a metal contact piece that gives a soft feel and a light click feel.
High density mounting. The dimension from the printed circuit board surface to the top surface of the cap is as low as 11 to 11.5 mm, and the case dimensions can be arranged horizontally without any gaps.
* Cap is sold separately. Please choose from the caps for DP1-100.

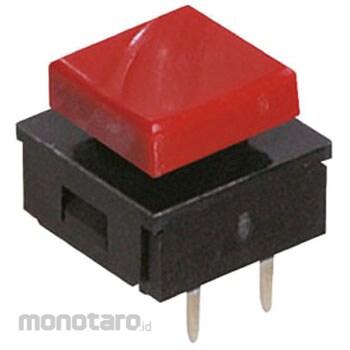

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Illuminated switch DP series
#Grup produk P115149212
Spesifikasi
| Button Color | Transparent / White / Red / Black / Gray / Blue / Orange / Yellow |
|---|---|
| Button Shape | Square |
| Contact | Gold plate |
| Electrical life | 200,000 times |
| Number of Poles | Single pole |
| Operating Temperature Range (°C) | -25~+75 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | Maximum: DC24V 50mA, minimum: DC20mV 10μA |
| Storage Temperature Range (°C) | -25~+85 |
| Stroke (mm) | 0.8±0.3 |
| Type | Illuminated |
| Type of Operation | Momentary |
