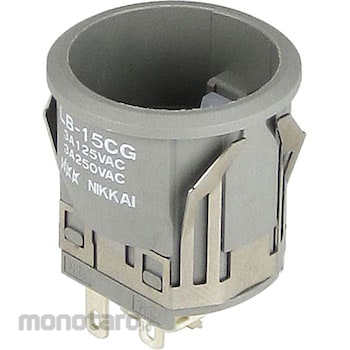

NKK Switches (formerly Nippon Kaikei) Illuminated pushbutton switch LB series
#Grup produk P115149133
Spesifikasi
| Button Shape | Round |
|---|---|
| Contact Material | Silver |
| Current Capacity | 3A 125VAC,3A 250VAC,3A 30VDC |
| Heat Resistance | When using a soldering iron: Tip temperature: 390°C or less; Soldering time: 4 seconds or less; Number of times: 2 times (after returning to room temperature) |
| Insulation Resistance (MΩ) | 200 or more (DC500V) |
| Maximum Mounting Panel Thickness (mm) | 1~4 |
| Mounting Dimensions (mm) | DIA22 |
| Operating Temperature Range (°C) | -25~50 |
| Optional Accessories | Fastening jig AT-112 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Standard | UL, C-UL, e-order |
| Terminal Shape | Solder (can also be used as tab #110) |
| Type | Illuminated, waterproof |
| Withstand Voltage | AC1000 (between terminal and terminal), AC1500 (between terminal and ground) |
| Withstand Voltage (V/minute) | AC1k or more (between terminals), AC1.5k or more (between terminals and earth) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Illuminated pushbutton switch with waterproofness. Shut out the intrusion of flux. Supports high brightness.
