Φ8mm screw mounting, short body type, space-saving design. The distance between terminals is 2.54 mm. Supports ultra-high brightness. High contact reliability. Shut out the intrusion of flux.
*This product is only the switch body. * The operation part (button) is sold separately. *The LED built into the illuminated button and the LED replacement jig ATA-111 are sold separately. * Jig AT-110 used for switch panel mounting is sold separately.

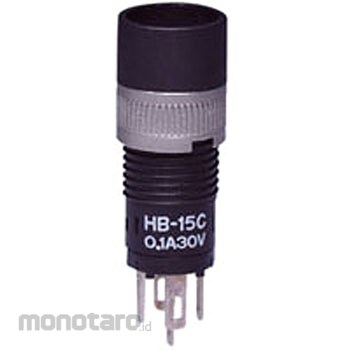

NKK Switches (formerly Nippon Kaikei) Illuminated pushbutton switch HB series
#Grup produk P115149115
Spesifikasi
| Circuit | Single pole double throw |
|---|---|
| Color | Black |
| Color (Body) | Black |
| Contact Material | Silver |
| Current Capacity | 0.1A 30VAC,0.1A 30VDC |
| Heat Resistance | When using a soldering iron: Tip temperature: 390°C or less; Soldering time: 4 seconds or less; Number of times: 2 times (after returning to room temperature) |
| Insulation Resistance (MΩ) | 100 or more (DC500V) |
| Maximum Mounting Panel Thickness (mm) | 0.5~5 |
| Operating Temperature Range (°C) | -20~50 |
| Standard | UL, C-UL, e-order |
| Terminal Shape | Solder |
| Type | Illuminated |
| Withstand Voltage | AC500 |
