IC test clips (0.3mm pitch compatible/5 clips)
Easily extract signals from narrow-pitch ICs!

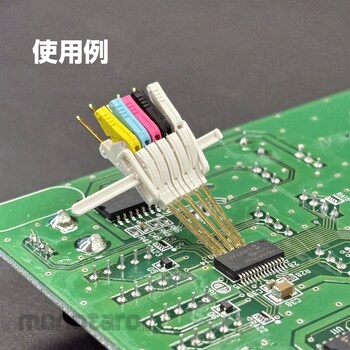

These medium-sized test clips (7.5mm tip length) can be directly attached to the terminals of surface-mount ICs with a 0.3 to 0.5mm pitch. Conductor resistance is kept below 50mΩ. Logic analyzer probes can be directly connected. Available in five colors: red, black, white, blue, and yellow, the operating handle is located at the rear to prevent accidental operation or contact with adjacent clips. The included hold bar and hold bar plate allow for stable clipping when used in series.
*Cables for connecting to measuring devices such as oscilloscopes are not included. Please prepare these separately.
SUNHAYATO IC test clip
#Grup produk P115148499
Spesifikasi
| Main Unit Dimensions (mm) | Body length: 29.1, Tip pipe: DIA0.6 x 7.5 |
|---|---|
| Pipe Dimensions (mm) | Tip pipe: DIA0.6 x 7.5 (middle type) |
| Quantity (Pieces) | 5 pieces (1 each of red, black, white, blue, and yellow) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Voltage | AC30V rms,DC60V |
| Set Contents | Hold bar x 1, hold bar plate x 2, instruction manual |
| Suitable For | SOP, QFP packages, etc.: 0.3 to 0.5 mm pitch |
| Tip Length (mm) | 7.5 |
