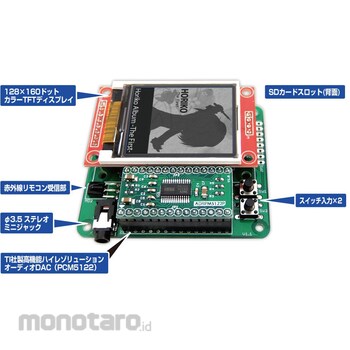

DAC board for Raspberry Pi that can enjoy high resolution audio from beginners to advanced users! Equipped with TI's high-performance high resolution audio DAC (PCM5122)! 128 x 160 dots, color TFT display installed!
* We do not guarantee the operation of all devices.
* The product is a general-purpose product for the domestic market.
* The design, color, specifications, etc. of products and accessories are subject to change without notice.
Bit Trade One High resolution DAC expansion board for raspberry pie
#Grup produk P115147791
Spesifikasi
| Operating Temperature | 0 ~ 40 °C (without condensation) |
|---|---|
| Power Supply | Powered by Raspberry Pi |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification* Compatible models: Raspberry Pi Model B + / 2 Model B / 3 Model B / 3 Model B + * Audio data bit length: 16/24 / 32bit * Sampling frequency: Minimum 8kHz, Maximum 384kHz * Analog output voltage: Standard 2.1Vrms * Load Impedance: Minimum 1kΩ * External clock input: x 1 * Display: Color TFT, 128 x 160 dots (screen size 28.03 x 35.04mm) * Infrared remote control function: Receive (remote control not included) * Input / output: PCM GPIO input / output x 4, switch input x 2 Audio connector: DIA3.5 stereo mini jack, SD card slot, system clock external input compatible * Size: W65xH26xD56mm (excluding protrusions) * Weight: Approximately 42g (board only) * Accessories: PCM5122DAC module , Screw set, 1 copy of warranty
Ulasan Produk
Tidak ada ulasan
