We want software engineers to use it !! A safe and secure general-purpose motor control board that does not require soldering. General-purpose motor control board / general-purpose motor control board for Raspberry Pi. The general-purpose motor control board developed for software engineers who are not accustomed to hardware control does not require soldering and prevents damage to the Raspberry Pi body due to power and voltage mistakes that are common when controlling motors with Raspberry Pi. By [visualizing] the mechanism and control signals, it is possible to check how much control is possible, making it a control board that is easy for software engineers.
* Raspberry Pi body, case, and cables are not included.

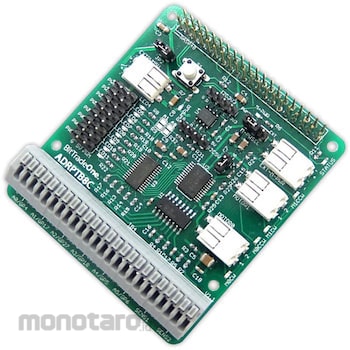

Bit Trade One General purpose motor control board for Raspberry Pi
#Grup produk P115147278
Spesifikasi
| Analog Input | (6ch) MCP3208: 12bit, (8ch) A / D converter SPI, (2ch) MCP3208: 12bit |
|---|---|
| Analog input range | (6ch)12bit:0~3.3V,(2ch)12bit:0~6.6V |
| Included Accessories | Spacer: M2.6 x 13mm x 4, Screw: M2.6 x 6mm x 8, Warranty card x 1 (RaspberryPi body not included) |
| Mass of Main Unit (g) | About 39 |
| Output | (PWM) 8ch: PCA9685 / 12bitPWM, 16ch (6ch used for TB6612) I2C |
| Power Supply | Power supply for PWM: 2-pole screwless terminal block, power supply for motor: 2-pole screwless terminal block |
| Sampling Speed | 50ksps |
| Warranty Period | 1 year from purchase |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification[Motor output: 2ch output current] 1.2ATB6612DualDC motor driver PWM output with forward/reverse/short brake/stop control function Control by PCA9685 Supports both 3.3V and 5V voltage systems 3.3VI2C Direct signal from Raspberry Pi (2.7kΩ Pulled up) 5VI2CPCA9517 Level conversion I2CRepeater PWM power supply and motor power supply can be supplied externally PWM power supply 5V Motor power supply 5-12V
