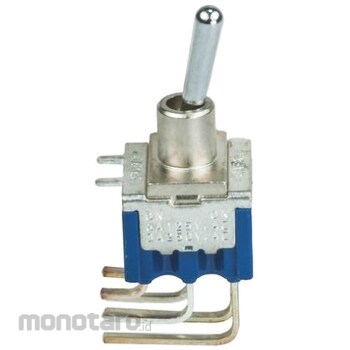

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Fujisoku toggle switch DPDT On-On

Specification
Contact Configuration = DPDT Switch Action = On-On Contact Rated Current = 6 A Mounting Type = PCB Terminal Type = Vertical Through Hole Actuator Length = 10.5mm Contact Resistance = 10mΩ Operating Temperature Range = -20 to +85°C UL , CSA. Momentary switch momentary states are shown in parentheses such as (on) -off- (on). The board toggle switch is mounted with a board mounting support bracket. Fujisoku Toggle Switches - 8G Series. These Fujisoku 8G series miniature board toggle switches are available in single or double pole contact configurations, momentary or alternate switching functions, right angle, vertical or straight through hole board mounting terminals. I'm here. It consists of various toggle switches and various toggle switch levers to meet various applications. 8GA includes standard toggle type (10.5 mm), 8G includes short toggle type (6.8 mm) and 8GD includes long toggle type (21.3 mm) switches. All 8G series toggle switches are UL94V-0 rated self-extinguishing, flux resistant, and washable epoxy shielded type. The insulation distance between the terminal and earth is greater than 4 mm. Three lever lengths available - standard 10.5 mm, short 6.8 mm, long 21.3 mm Right angle, vertical or horizontal board mounting options Maximum switch rating: 6 A @ 125 V ac, 3 A @ 250 V ac maximum contact resistance: 10 mΩ Silver-plated contacts Insulation strength: 1500 V ac for 1 minute Insulation resistance: 1000 MΩ minimum Electrical life - 25,000 operations for momentary toggle switches, 50,000 operations for alternate toggle switches Self-extinguishing, UL94V-0 compliant Operating temperature range: -20 to +85 °C
