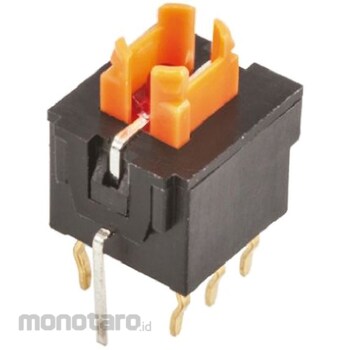

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Fujisoku push button switch, SPDT, 100 mA, momentary, PCB
#Grup produk P115146598
Spesifikasi
| Circuit Configuration | 2PDT |
|---|---|
| Color | Red |
| Feature | Control: Momentary |
| Forward Current (mA) | 30 |
| Forward Voltage (V) | (Nominal) 2.0 (Max) 2.5 |
| Insulation Resistance (MΩ) | (Minimum) 100 (DC500V) |
| Maximum Contact Resistance (MΩ) | 100 |
| Maximum Reverse Voltage (V) | DC5 |
| Operating Temperature Range (°C) | -10~70 |
| Plating | Contacts: Gold plated |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Current (A) | (Maximum) 0.1, (Minimum) 0.000001 |
| Rated Voltage (V) | (Max)DC30 |
| Series | TP |
| Storage Temperature Range (°C) | -25~85 |
| Structure | With LED |
| Switch Type | ON-ON |
| Withstand Voltage (V/minute) | AC500 |
