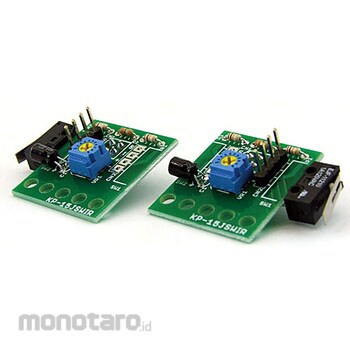

Kyohritsu Electronic Industry Contact & infrared reflection sensor board
#Grup produk P115141070
Spesifikasi
| Connecting Terminal | QI 4P header (2.54mm pitch) |
|---|---|
| Current (mA) | (Operating) 6 |
| Outer Dimensions, Width W x Depth D x Height H (mm) | Approx. 25 x 28.5 x 17 |
| Power Supply Voltage (V) | DC3.3 |
| Type | Craft kit |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Optional sensor board for 2WD motor vehicle base (KP-15J 2WD-A). It consists of two sets, one for the left and one for the right, and two sensors, a contact sensor and a reflective infrared sensor, are mounted on one board. By attaching the contact sensor to the main board and the side surface and expanding it, it becomes possible to detect the wall surface on the side. In addition, the reflective infrared sensor can detect the colored tape drawn on the floor and manufacture a line tracer, which can be applied in various ways depending on the device.
Feature
SpecificationSensor type: 2 types, Micro switch: Operating range (10gf-50gf [weight gram]), reflective infrared sensor: infrared emission wavelength 940nm / maximum detection distance 6mm
