The plunger guide has a structure integrated with a coil bobbin molded from nylon resin, and has a highly reliable quality with greatly improved electrical and mechanical characteristics.
It is an automatic return type by using a built-in spring.
* The energization rate is 1/10, the frequency of use is 6 times / minute or less, and the maximum continuous energization time is 1 minute.

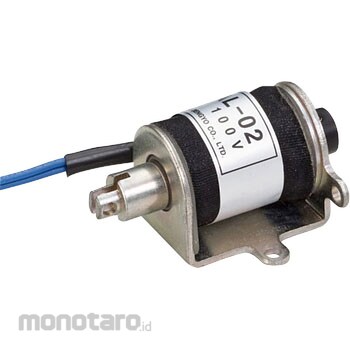

Kokusai Dengyo Compact AC solenoid dual use type (PULL-PUSH)
#Grup produk P115140770
Spesifikasi
| Insulation Resistance (MΩ) | 50 or more (DC500V) |
|---|---|
| Mass (g) | 81, (Movable iron core) 18 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Frequency (Hz) | 50/60 shared (2 leads) |
| Stroke (mm) | 10 |
| Type of Insulation | Class A insulation equivalent |
| Withstand Voltage (V/minute) | AC1500 |
